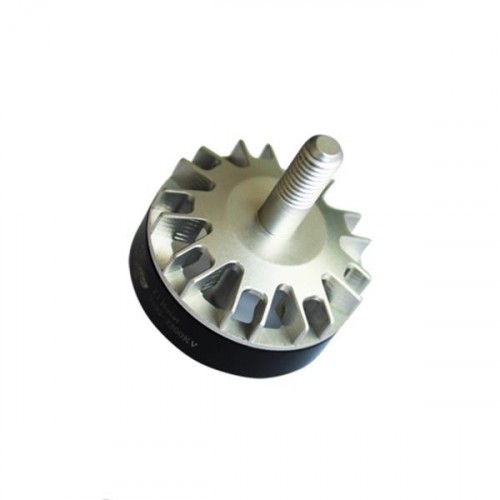

Brotherhobby Tornado T1 2205-2300/2600KV Racing Edition CW Brushless Motor For FPV Multicopter

Product Code: 1075895
Availability: In stock , usually dispatched in 1-3 business days

Available Options

Mode: *

Brotherhobby Tornado T1 2205-2300/2600KV Racing Edition CW Motor For FPV Multicopter

Brands: Tornado
Model:T1 2205-2300/2600KV
Configu ration:12N14P
No.of Cells(Lipo):3-5S
Rotor: 2mm N52H arc magnets
Wire AWG: 20AWG
Wiring config Single-stranded :
2300KV = 1 x 0.5mm 11 turns Delta DLRK
2600KV=1X0.53mm 9.5 turns Delta DLRK
Stator: 0.15mm Nippon Steel silicon steel
Bearings: Japanese NSK
Base casing: Al 7075
Bell cap:Al 7075


1.Tornado T1 2205 2300kv Full Results[CLICK HERE]

2.Tornado T1 2205 2600kv :

Package Included:
1 x T1 2205-2300/2600KV Racing Edition CW Motor

1 X Black Nut
4 X Screws
