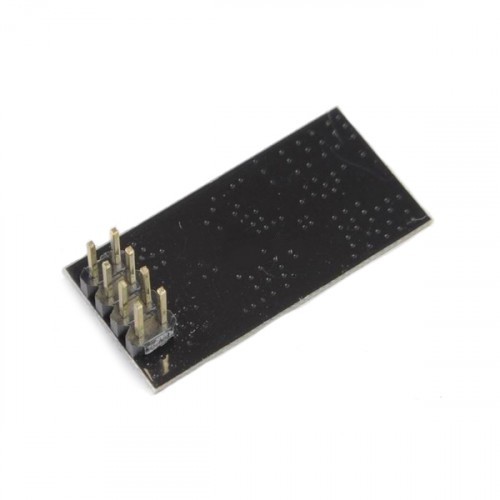

2.4G NRF24L01 PA LNA Wireless Module 16*32mm Without Antenna

Product Code: 922601
Availability: Expected restock on July 4, 2019
2.4G NRF24L01 PA LNA Wireless Module 16*32mm Without Antenna

Voltage:3-3.6V (3.3V best)
Maximum output power:+20dBm
Transmission Current (peak):115mA
Receiving Current (peak):45mA
Power-down Current:4.2uA
Operating Temperature:-20~70C
Receive 2Mbps mode:-92dBm
Receive 1Mbps mode:-95dBm
Receive 250Kbps mode:-104dBm
PA Gain:20dB
LNA Gain:10dB
LNA noise figure:2.6dB
Antenna Gain(peak):2dBI
2Mbps transmission distance (open):520m
Size: 45.54mm x 16.46mm

The open area distance is about 1100m with Rate of 250K, 750m with the rate of 1M, 520m with the rate of 2M.
In Free license 2.4G ISM band, you can do point to point application and can also be composed of star network.
Small size, easy to embed in any space-constrained products
Can add an MCU through the SPI port to control NRF24L01P + PA + LNA
Complish long distance wireless data transmission system

Package Included:
1 x Module
